Gap 要素は、まさにその名前が示すとおり、ギャップをコンテンツに追加します。異なるレイアウト 要素があるがページで要素を特定のスペースだけ垂直に離したい場合に、使用しなければならないのが Gap 要素です。
以下のコードを使用して、上記の画像のように 2 つの Gap 要素によって分割された 3 つの Text 要素を追加します。このトピックは、section1
と呼ばれる少なくともひとつの Section 要素だけでなく、Report 要素が定義済みであることを前提としています。
Gap 要素は、ひとつのプロパティ、Height
プロパティしか公開しません。Height プロパティによって、Gap の高さを固定のポイント数で指定するか、使用可能なスペースの残りのパーセントで指定することができます。
Gap 要素の高さを固定の高さに設定する時には、Height プロパティを FixedHeight
クラスの新しいインスタンスに設定する必要があります。ギャップを開けたいポイント数を FixedHeight
クラスのコンストラクターに渡します。
Gap 要素の相対的な高さを使用するには、Height プロパティを RelativeHeight

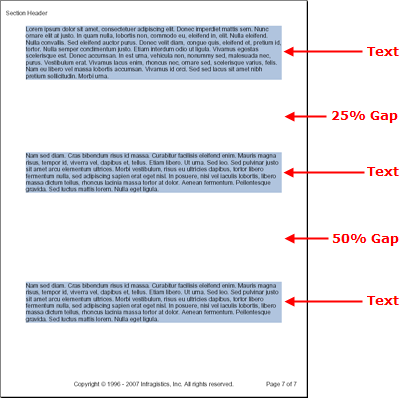

クラスのインスタンスに設定する必要があります。これによって、使用可能な残りスペースのパーセンテージでギャップの高さを指定できます。そのため、ページの最後に追加された Gap 要素と同じ値を持つページの最初に追加された Gap 要素は、より大きなギャップになります。これは、最初の Gap 要素はその後に残されるページの量が多いためにパーセントで指定すると数字が大きくなってしまうからです。右の画像を参照すると、この概念をよく理解できます。最初の Gap 要素は、追加された時点のページの 25% を使用しています。2 番目の Gap 要素は追加された時点のページの 50% を使用していますが、最初の Gap 要素とほぼ同じサイズになっています。
Visual Basic の場合:
Imports Infragistics.Documents.Reports.Report
...
Dim gapText As Infragistics.Documents.Reports.Report.Text.IText = section1.AddText()
gapText.Background = New Background(Brushes.LightSteelBlue)
gapText.AddContent("Paragraph one text...")
Dim gap As Infragistics.Documents.Reports.Report.IGap = section1.AddGap()
gap.Height = New RelativeHeight(25)
gapText = section1.AddText()
gapText.Background = New Background(Brushes.LightSteelBlue)
gapText.AddContent("Paragraph two text...")
gap = section1.AddGap()
gap.Height = New RelativeHeight(50)
gapText = section1.AddText()
gapText.Background = New Background(Brushes.LightSteelBlue)
gapText.AddContent("Paragraph three text...")
C# の場合:
using Infragistics.Documents.Reports.Report;
...
Infragistics.Documents.Reports.Report.Text.IText gapText = section1.AddText();
gapText.Background = new Background(Brushes.LightSteelBlue);
gapText.AddContent("Paragraph one text...");
Infragistics.Documents.Reports.Report.IGap gap = section1.AddGap();
gap.Height = new RelativeHeight(25);
gapText = section1.AddText();
gapText.Background = new Background(Brushes.LightSteelBlue);
gapText.AddContent("Paragraph two text...");
gap = section1.AddGap();
gap.Height = new RelativeHeight(50);
gapText = section1.AddText();
gapText.Background = new Background(Brushes.LightSteelBlue);
gapText.AddContent("Paragraph three text...");
